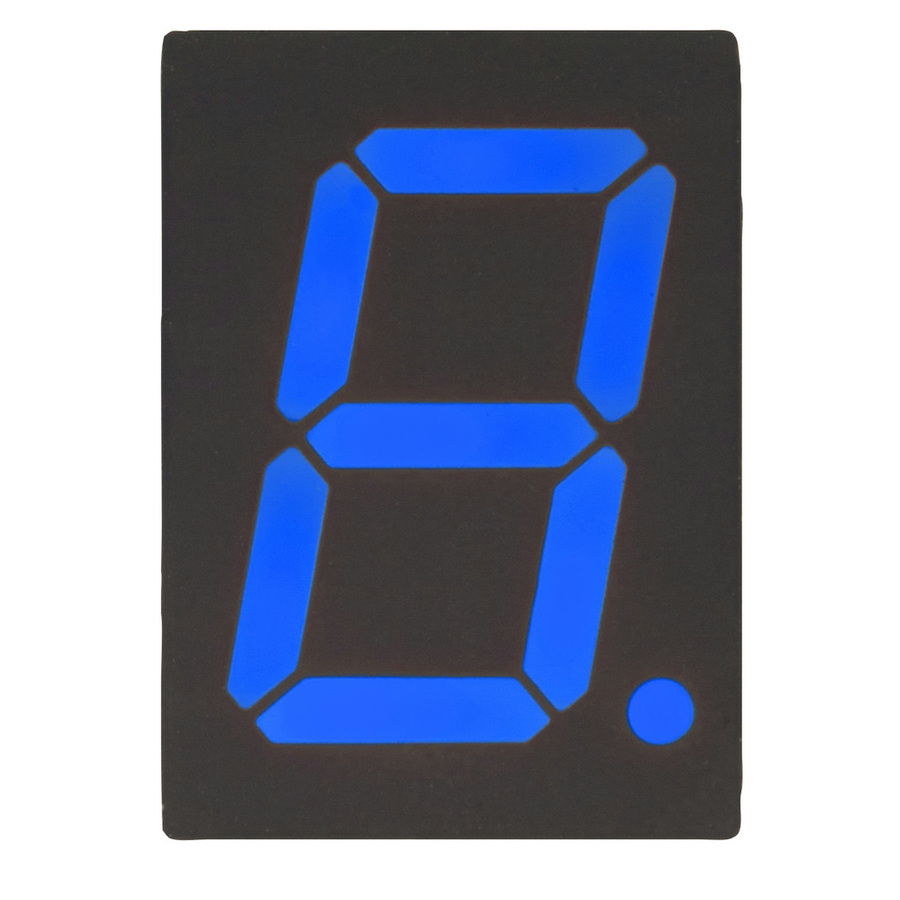

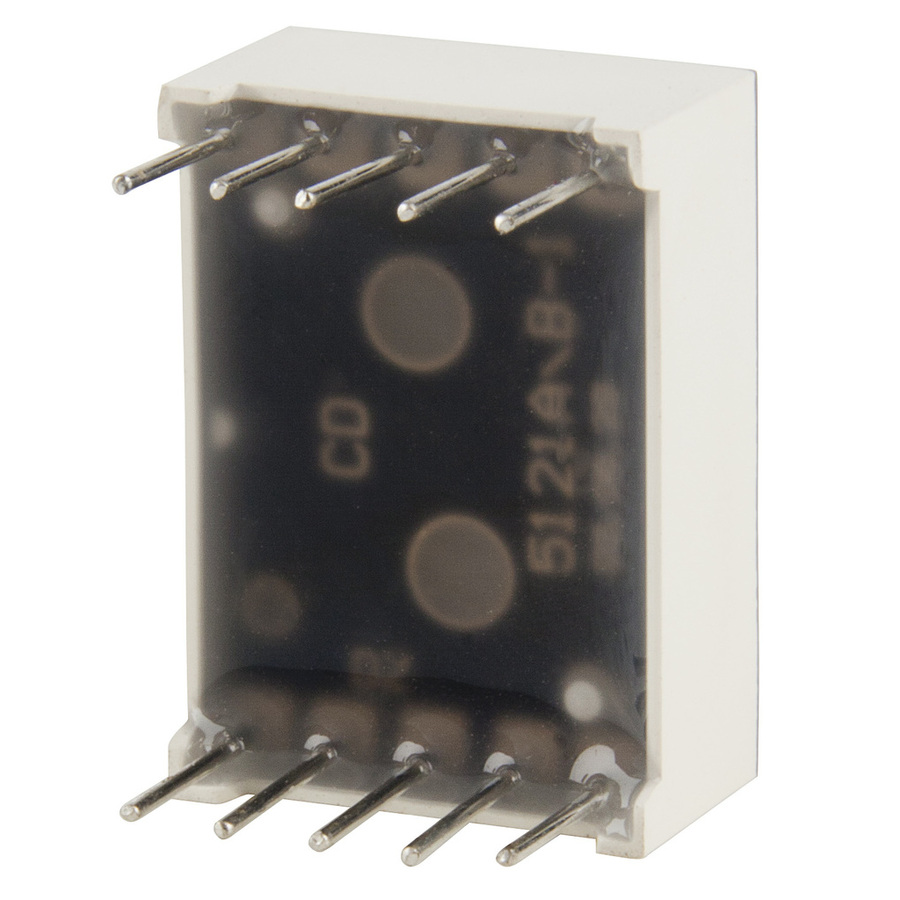

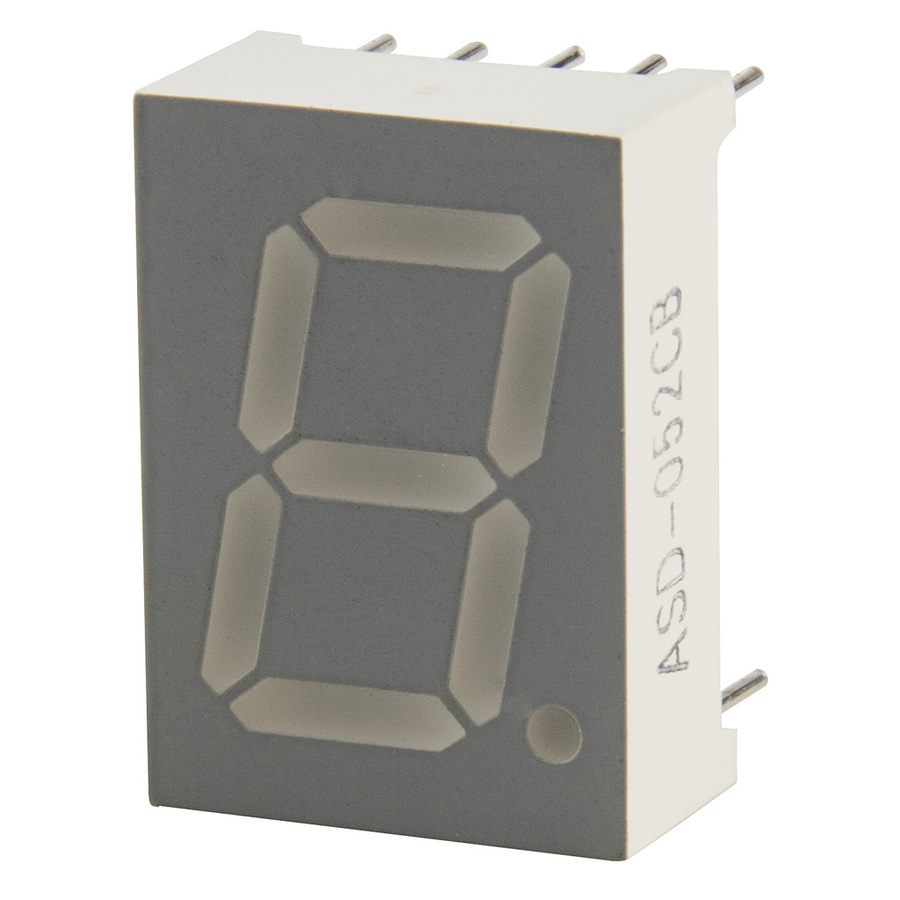

Blue 7 segment LED display
Blue 7 segment LED display
Blue 7 segment LED display
Blue 7 segment LED display

CAT. No. ZD1856

Blue 7 segment LED display
product image thumb
product image thumb
product image thumb

Blue 7 segment LED display

$6.95
Standard 7 segment LED module for numerical output display.

Please call (02) 4782 6943

Description

LED

Standard 7 segment LED module for numerical output display. Designed to be fitted in close format to allow display of larger numbers. Wiring format: Common Cathode


    Specifications

    Product Dimensions

    Height
    		 17.5mm, 13.2mm
    Width
    		 12.3mm, 7.6mm
    Depth
    		 7mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00338l
    Packaged Height
    		 1.3cm

    Additional Dimensions

    Dimension for
    		 Other (details below)
    Height
    		 17.5mm, 13.2mm
    Dimensions details
    		 Digit
    Width
    		 12.3mm, 7.6mm

    LED Components

    Light Colour
    		 Blue
    Illumination Type
    		 Single Colour
    LED Type
    		 7 Segment Digit Display
    I<sub>f (typ)</sub> - Typical Forward Current
    		 10mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.1V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD1856-dataSheetMain.pdf
