Arduino Compatible 8 x 8 LED Dot Matrix Module

$7.95
Used in our Jaycar Maker Hub Workshop 'Build your own Arduino-based Snake Game!', this popular grid of red LEDs has a huge possible project potential and is simple to connect to your controller.

Please call (02) 4782 6943

Description

Arduino® Compatible
LED

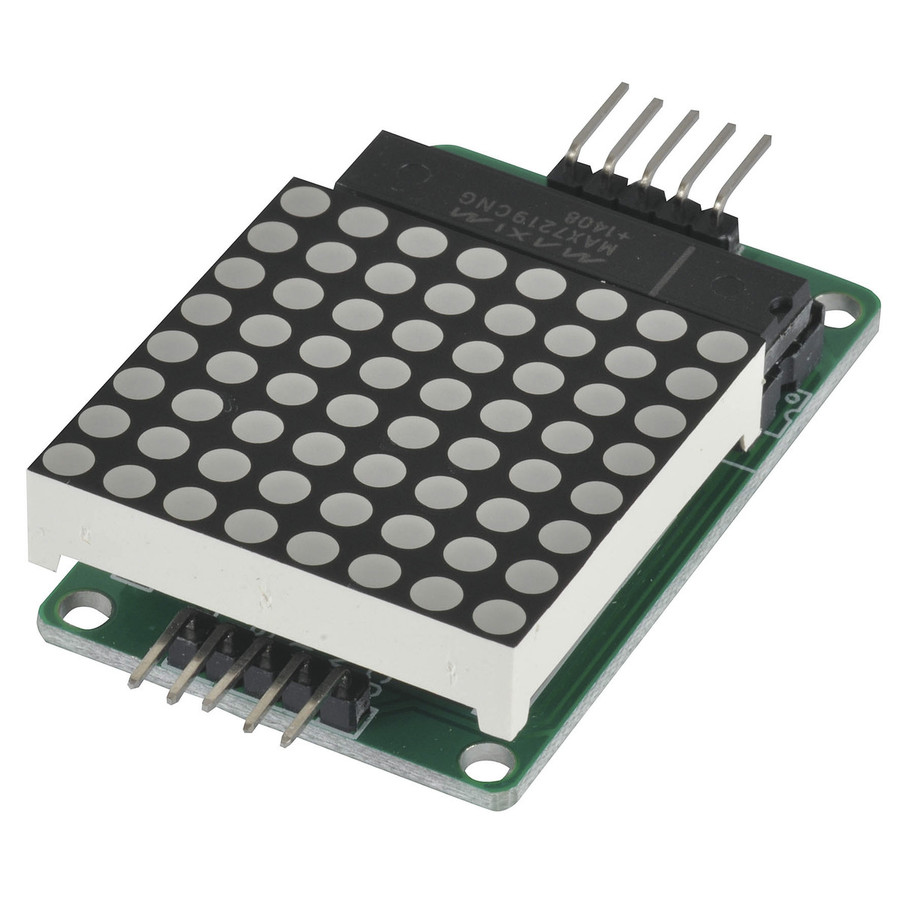

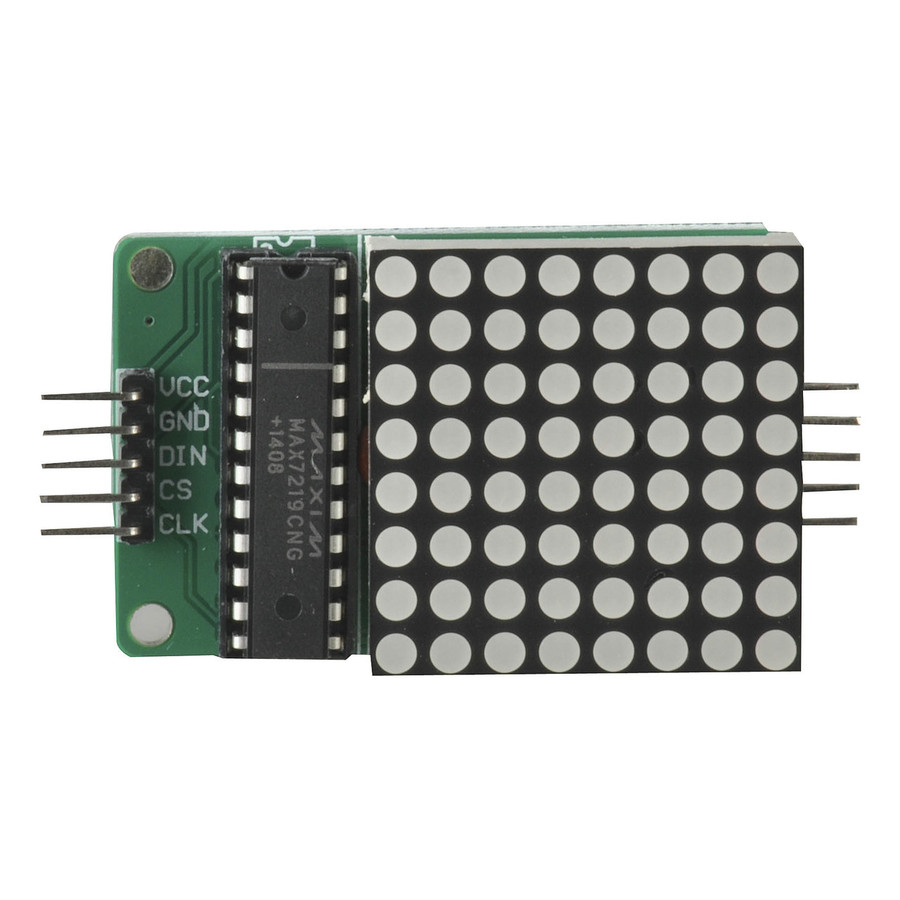

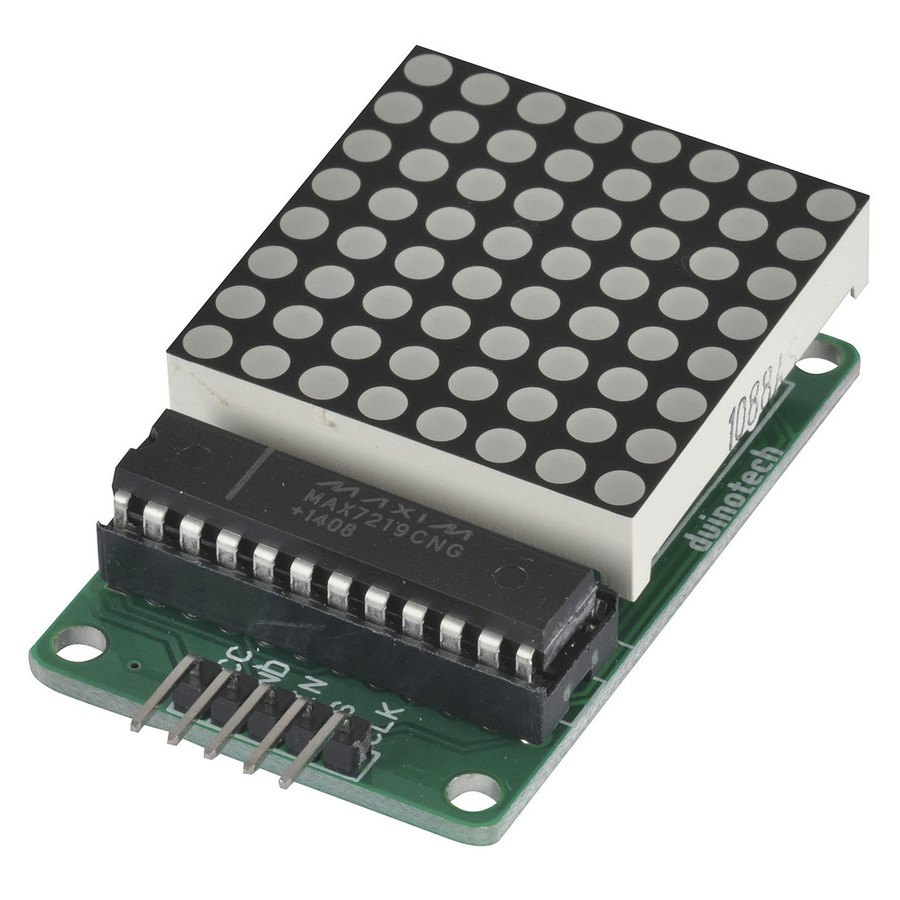

A 64 Red LED matrix, this module is easily controlled with the Led Control library. Display your own custom characters, or use multiple modules together to make a scrolling display.

Features:

•    Protocol: SPI (Shift-Register)
•    Chipset: MAX7219
•    LED Colour: RED


    Specifications

    Product Dimensions

    Height
    		 32mm
    Width
    		 62mm
    Depth
    		 14mm

    Packaged Dimensions

    Packaged Length
    		 8.1cm
    Packaged Width
    		 5.9cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.043011l
    Packaged Height
    		 0.9cm

    Arduino Modules

    Sensor IC
    		 MAX7219
    Sensor Outputs
    		 SPI (Shift-Register)
    Required Supply Voltage
    		 5V

    Product Availability

    Availability
    		 Stocked item
